KY 028 KY-028 Digital Thermistor Temperature Sensor Module For Arduino In Pakistan

Digital Temperature Sensor KY-028 for Arduino, measures temperature changes based on the thermistor resistance. This module has both digital and analog outputs, there’s a potentiometer to adjusts the detection threshold on the digital interface.

Compare

150

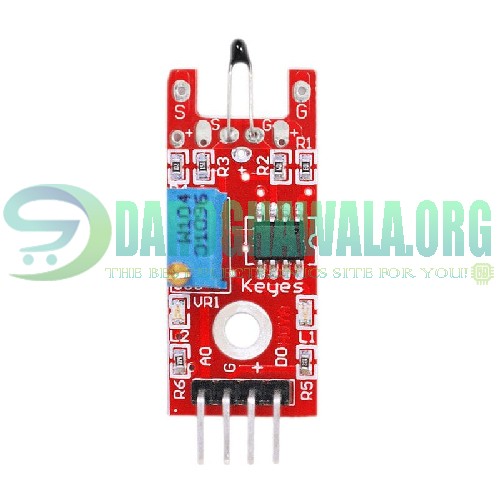

The KY-028 consists of an NTC thermistor, an LM393 dual differential comparator a 3296W trimmer potentiometer, six resistors, and two indicator LEDs. The board features an analog and a digital output.

Specification of KY-028 Digital Thermistor Temperature Sensor Module For Arduino:

  • Model: KY-028
  • Product Name: Digital Thermistor Temperature Sensor Module
  • Operating Voltage:3.3V to 5.5V
  • Temperature measurement range:-55°C to 125°C [-67°F to 257°F]
  • Measurement Accuracy:±0.5°C
  • Board Dimensions:15mm x 36mm [0.6in x 1.4in]

Features of KY-028 Digital Thermistor Temperature Sensor Module For Arduino:

  1. Using the NTC thermistor sensor, good sensitivity.
  2. The comparator output signal is clean, has good waveform, driving ability, more than 15mA.
  3. Adjust the temperature distribution position detection threshold.
  4. The working voltage: DC 3.3V-5V.
  5. The output format: digital switching outputs ( 0 and 1 )
  6. A fixed bolt hole for easy installation.
  7. Using a wide voltage LM393 comparator













Package includes:

  • 1 x  KY-028 Digital Thermistor Temperature Sensor Module For Arduino In Pakistan
SKU: D167,SB54 Category:
