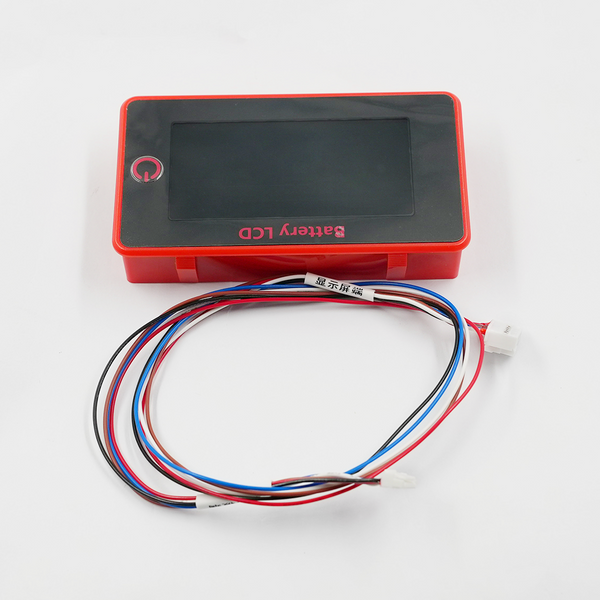

100Balance BMS Display 3.0inch LCD Display for Smart Active Balance BMS In Pakistan

100Balance BMS Display 3.0inch LCD Display for Smart Active Balance BMS In Pakistan.

Specification of 100Balance BMS Display 3.0inch LCD Display for Smart Active Balance BMS:

1. Easy installation, plug-in interface, no need to welding wires and snapback buckles.
2. Accurate display, SOC , current, voltage ,temperature, charge/discharge status are intuitively and clearly displayed.
3. Ultra-wide temperature value, -20℃ to 70℃ wide temperature available. Suitable for various working conditions.
4. Low power consumption, the power consumption current does not exceed 20mA, and the sleep power consumption is as low as 0.1W.
5. Communication port :LED 12V
6. Communication port: UART (6PIN , 450mm , GH1.25)
7. Communication port: RS485 (5PIN+6PIN , 450mm , GH1.25)
8. Size: 93 x 52 x 18mm

Package Include:

• 1 x 100Balance BMS Display 3.0inch LCD Display for Smart Active Balance BMS In Pakistan
